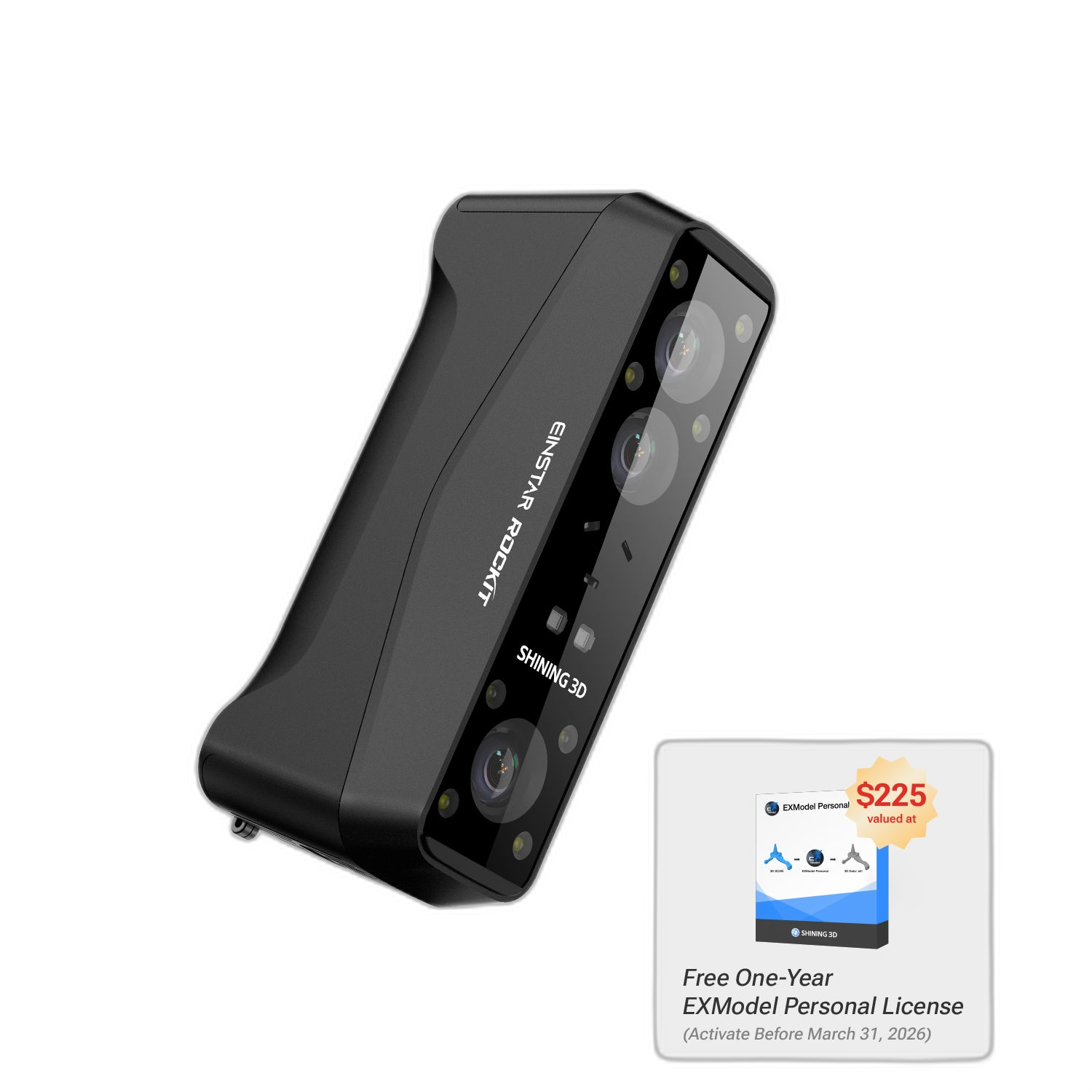

Wireless Laser 3D Scanner — Entry Level
Einstar
Rockit
Rock-it in Your Pocket
Pocket-sized, cable-free, and built for serious results. Dual-mode Blue Laser + IR VCSEL scanner with true built-in Wi-Fi — no hubs, no tethers. Capture fine detail or large objects up to 4.8M points/sec, anywhere.
420g
Net Weight
4.8M pts/s
IR Scan Speed
3 hrs
Battery Life
Authorized Einstar Reseller
Expert Application Support
Fast Nationwide Shipping
Manufacturer Warranty
(248) 707-2950
Marker-Free Laser Scanning
True Built-in Wi-Fi
Blue Laser + IR VCSEL
4.8M Points/Second
420g Pocket Size
5MP Color Camera
3-Hour Battery Life
Up to 90 fps
USB Type-C + Wi-Fi
0.05mm Resolution
IP50 Rated
EXStar Hub Software
Class 2 Laser
110,000 Lux Outdoor Use
Marker-Free Laser Scanning
True Built-in Wi-Fi
Blue Laser + IR VCSEL
4.8M Points/Second
420g Pocket Size
5MP Color Camera
3-Hour Battery Life
Up to 90 fps
USB Type-C + Wi-Fi
0.05mm Resolution
IP50 Rated
EXStar Hub Software
Class 2 Laser
110,000 Lux Outdoor Use
01
What Makes It Different
Rock-It in Your Pocket
0 Cables
True Wireless Design
Built-in Wi-Fi module — no extra hub, no adapter, no setup hassle. Stable real-time sync to PC over Wi-Fi. USB Type-C cable connection always available as fallback if interference occurs. Truly untethered scanning.

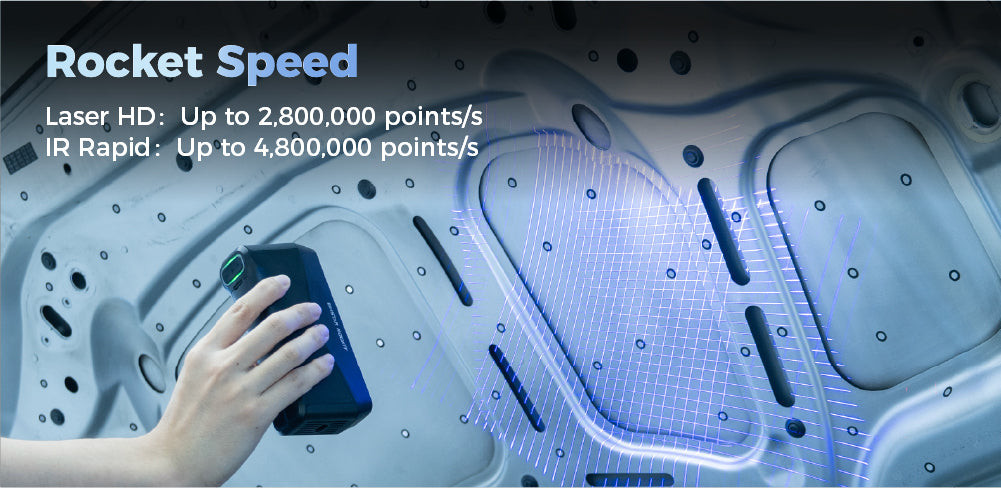

4.8M pts/s
Dual-Mode Capture Speed
Laser HD mode captures up to 2,800,000 points/sec for detailed surface work. IR Rapid mode reaches 4,800,000 points/sec for fast medium-to-large object capture. Switch modes on the fly for the job at hand.
420g
Pocket-Size, Solid Build
Measures just 130×37×61mm — fits in your hand, fits in your pocket. Refined finish with a solid build quality that feels professional. Up to 3 hours of runtime on a swappable battery. Two batteries included.
38 Lines
Blue Laser — HD Precision
38 laser lines: 19+19 crossed for fast wide-area capture plus 7 parallel lines for fine surface details. Great material adaptability — works on black and reflective surfaces without scanning spray. Optimized for deep-hole geometry.
IR VCSEL
Rapid Mode — Large Objects Fast
Scan a full human body from face to feet safely in under 60 seconds. High efficiency for medium-to-large objects with a massive 1170×1385mm FOV. Performs well outdoors and in bright environments up to 70,000 Lux.
5MP
True-Color Texture Camera
Dedicated 5MP color camera captures vibrant, photorealistic textures. Advanced texture mapping algorithm ensures genuine 5MP resolution on the final 3D model — no resolution loss. Perfect for AR/VR, digital art, and design work.
02
Scan Modes
Blue Laser + IR VCSEL — Best of Both
Laser HD Mode
Blue Laser — Precision & Detail
38 laser lines (19+19 crossed + 7 parallel) deliver exceptional resolution on complex, detailed surfaces. Ideal for industrial parts, automotive components, intricate geometry, and any object where surface accuracy matters most. Works without scanning spray on dark and reflective materials.
Light Source38 Laser Lines (19+19 + 7 parallel)
Resolution0.05 – 10 mm
Scan Speed2,800,000 points/sec
Working Distance100 – 600 mm
Max FOV (crossed)545 × 620 mm
Outdoor Limit110,000 Lux
AlignmentGlobal Marker / Markers / Features / Hybrid
Min Scan Volume5 × 5 × 5 mm
Marker-Free
Works on Dark Surfaces
Deep-Hole Scanning
Reflective Surfaces
IR Rapid Mode
IR VCSEL — Speed & Scale
VCSEL infrared technology unlocks blazing speed for medium and large objects. Hybrid alignment (Texture + Feature + Markers) adapts to a wider range of scanning scenarios. Full-body scanning in 60 seconds. Massive working range up to 1400mm — outstanding for outdoor capture in varied lighting.
Light SourceIR VCSEL
Resolution0.2 – 10 mm
Scan Speed4,800,000 points/sec
Working Distance160 – 1400 mm
Max FOV1170 × 1385 mm
Outdoor Limit70,000 Lux
AlignmentGlobal Marker / Markers / Features / Texture / Hybrid
Min Scan Volume50 × 50 × 50 mm
Full Body in 60 sec
Texture Alignment
Large Object Ready
Hybrid Tracking
03

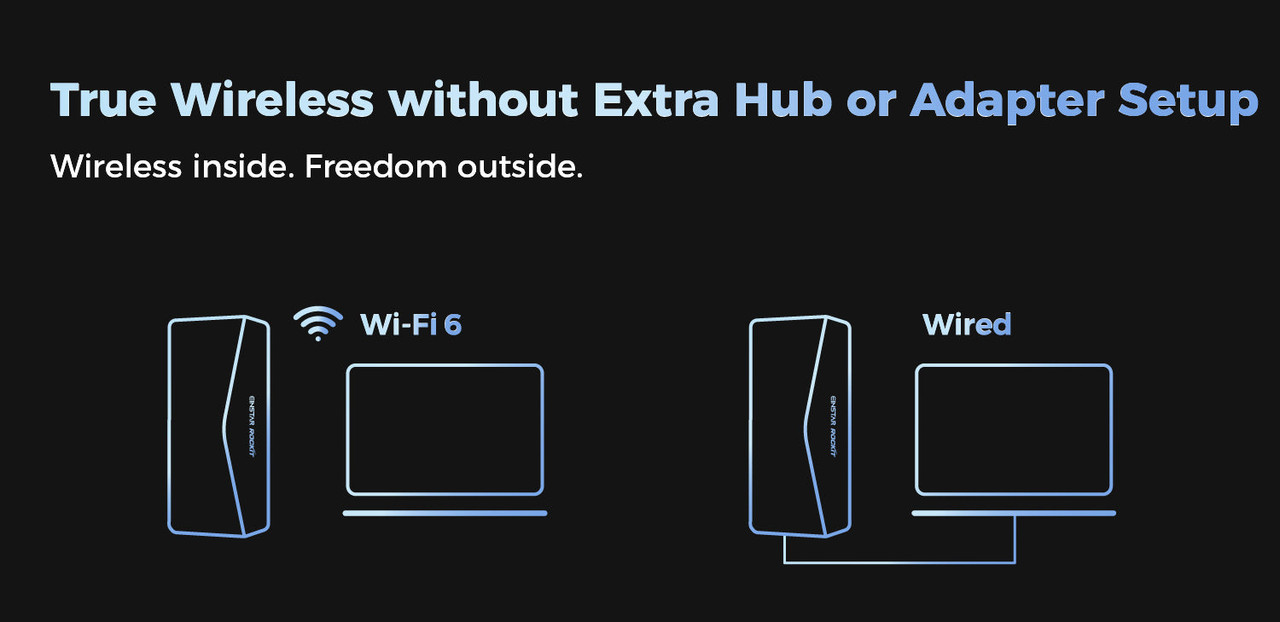

Wireless Freedom
Wireless Inside. Freedom Outside.
Built-in Wi-Fi Module
No Cables. No Hubs. No Setup.
Built-in Wi-Fi module connects directly to your PC without any extra hub or adapter. True wireless scanning means no cables tangling during movement around large objects. When Wi-Fi interference occurs, a USB Type-C cable connection is always available as a backup. Swappable 5,500mAh battery with 3-hour runtime — charge one while scanning with the other.
No External Hub Needed
Real-Time PC Sync
3-Hour Runtime
Dual Battery System
USB-C Fallback
60W PD 3.0 Charging
04
Blue Laser Technology
Precision Laser for Industrial Parts
38 Laser Lines

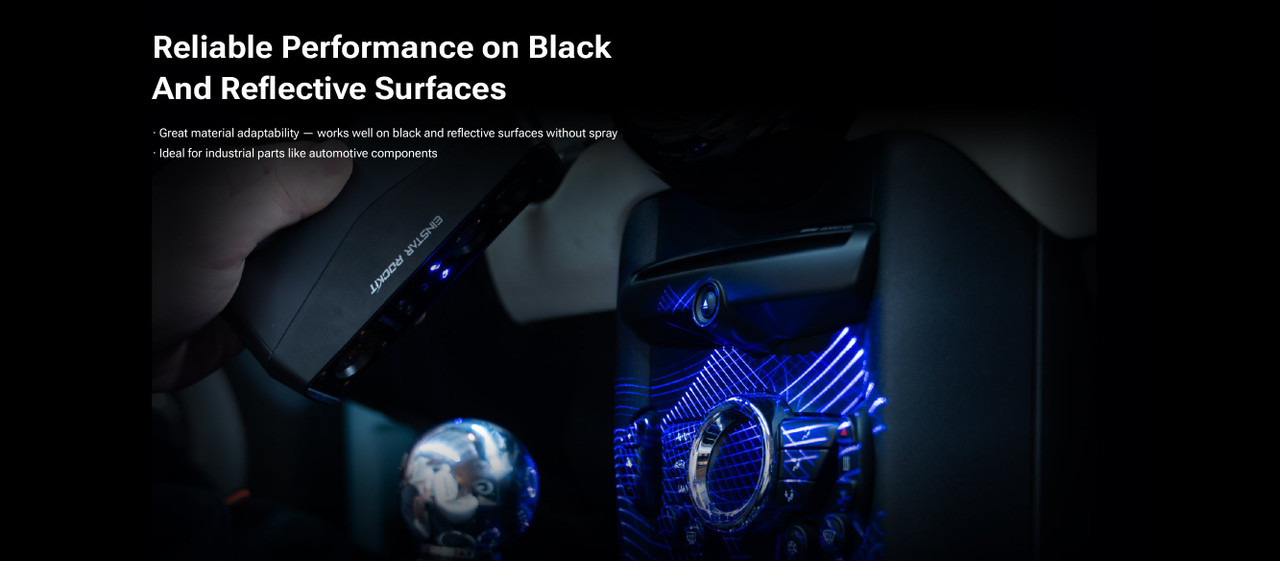

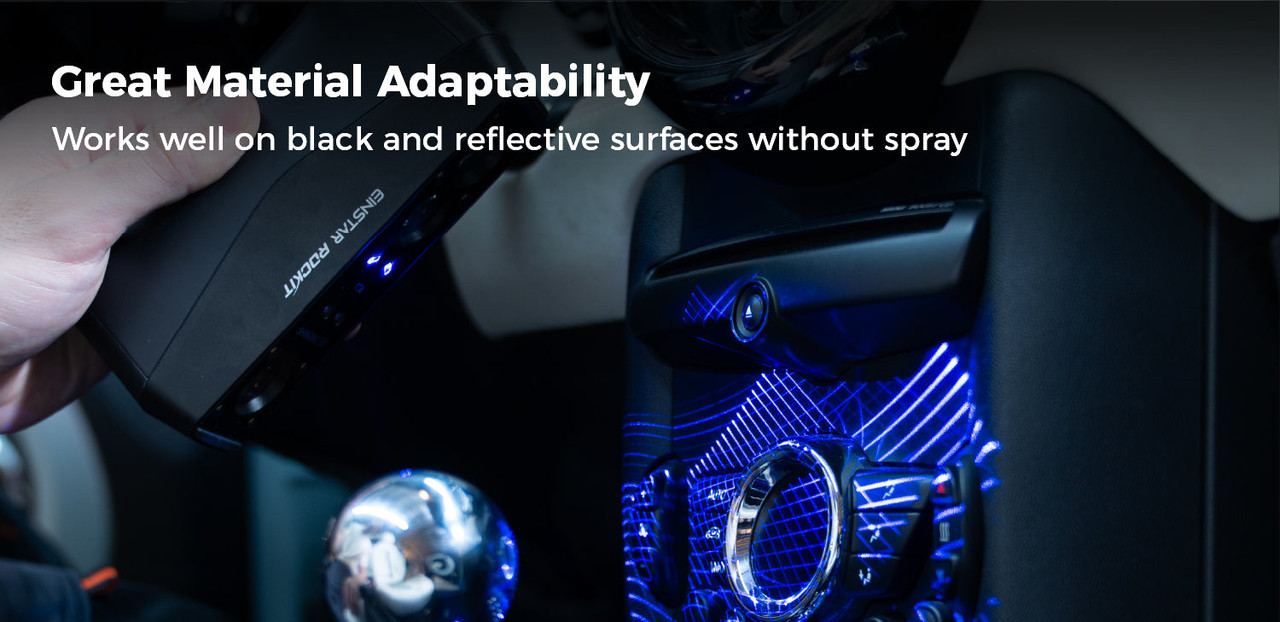

Works on Any Surface — No Spray Required

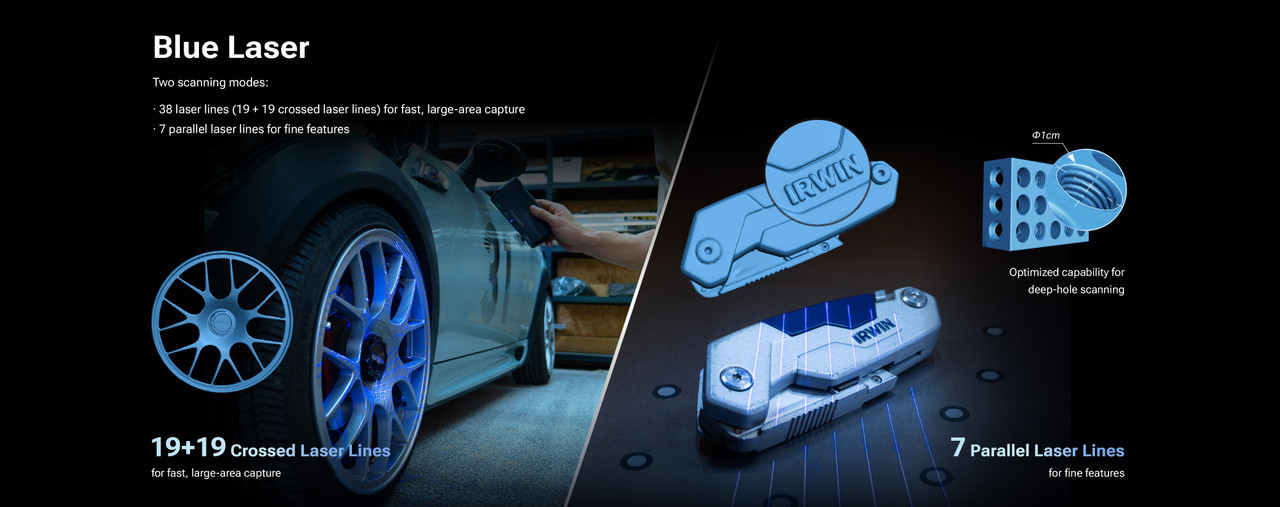

38 laser lines in two configurations: 19+19 crossed for fast, wide-area data capture, and 7 parallel lines for capturing fine surface detail and features. The blue laser excels where other scanners fail — dark plastics, carbon fiber, matte metals, and reflective chrome finishes scan reliably without preparation spray.
Crossed19+19 lines — fast large-area capture up to 545×620mm FOV
Parallel7 lines — fine feature and edge detail up to 355×425mm FOV
Deep HolesOptimized geometry for internal cavity scanning
Automotive Parts
Carbon Fiber
Reflective Chrome
Black Plastics
Spray-Free
Marker-Free Operation
Skip the Markers. Scan Faster.
Marker-free laser scanning in both crossed and parallel line modes. Feature recognition aligns scan data automatically — simplifying workflow and improving efficiency. Marker-based alignment remains available for low-feature objects. Recommended system memory for marker-free mode: 64GB RAM.
Feature Tracking
Global Marker Support
Hybrid Alignment
Faster Setup
05

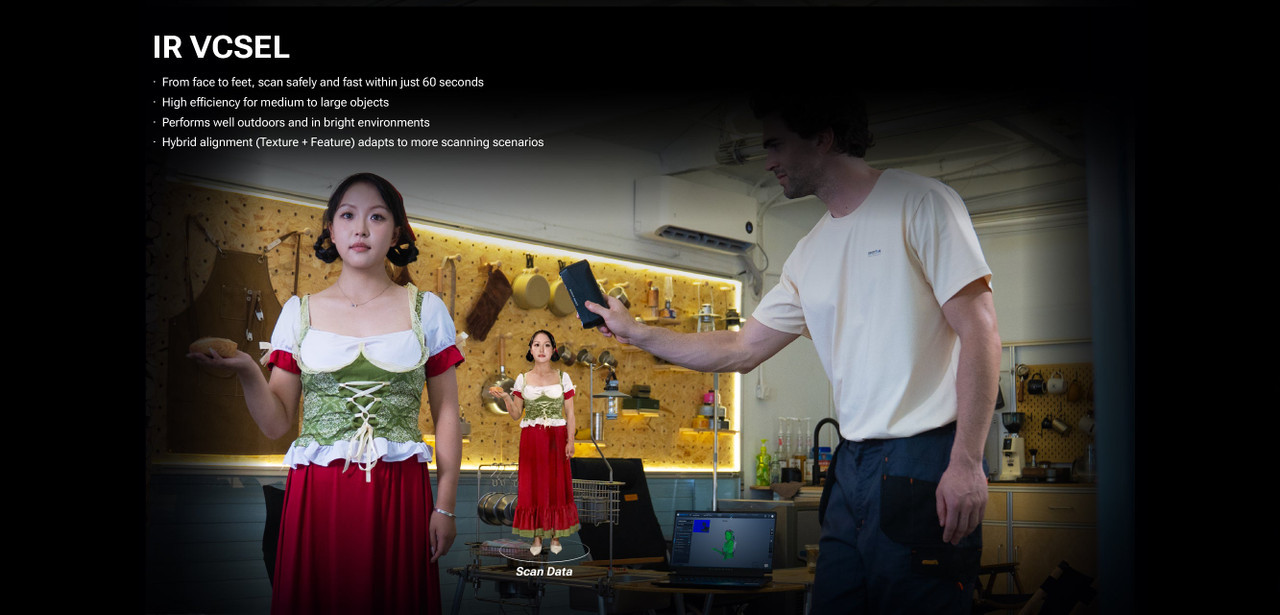

IR Rapid Mode
From Full Body to Outdoor Monuments
IR VCSEL Technology
Large Objects in Seconds. Anywhere.
The IR Rapid mode uses VCSEL infrared light to capture medium and large objects at up to 4.8 million points per second. Scan a full human body from head to toe safely and completely in under 60 seconds. Massive 1170×1385mm FOV keeps entire objects in frame without constant repositioning.
FOV1170×1385mm — widest field of view for large object capture
Range160mm to 1400mm working distance flexibility
BodyFull human body scan in under 60 seconds
Outdoor Ready
Scan Under Direct Sunlight
Laser HD mode operates up to 110,000 Lux and IR Rapid mode up to 70,000 Lux. Fully wireless and cable-free for true outdoor mobility. Perfect for capturing outdoor sculptures, statues, cultural artifacts, large equipment, and anything that can't come into a lab. Battery-powered, no power outlet required.
110,000 Lux Rated
No Power Outlet Needed
Sculptures & Monuments
Cultural Preservation
Site Documentation
06
Use Cases
One Scanner. Every Application.
Automotive
Body kits, trim panels, interior components. Works on all finishes — matte to chrome — without spray prep.
3D Printing
Capture existing parts for reverse engineering, custom fitment, and print-ready mesh output in STL, OBJ, 3MF.
Healthcare & O&P
Full body scanning in 60 sec. Ideal for orthotics, prosthetics, and custom medical device applications.
AR / VR & Digital Art
5MP texture capture produces photorealistic 3D assets ready for game engines, virtual environments, and digital content pipelines.
Automotive Customization
Rapidly capture exterior body kits, interior trim, and accessories for custom fitment and design modification. Handles matte plastics, carbon fiber, glossy paint, and chrome without prep spray. Compact enough to maneuver around a full vehicle.
Cultural Heritage & Art
Capture outdoor sculptures, historical artifacts, and studio artworks without cables or fixed locations. The 5MP color camera preserves vibrant surface textures for archival records, museum digitization, and immersive AR/VR content creation.
Research & Education
Intuitive EXStar Hub software with a gentle learning curve lets students and researchers focus on their projects, not the technology. High-quality data integrates seamlessly with professional 3D design and modeling workflows.
07
Software
EXStar Hub — Next-Gen Scanning Platform
Included Software
One Interface. Streamlined Workflow.
EXStar Hub is the unified software platform for the EINSTAR Rockit and EINSTAR 2. A single interface handles all scanning modes, data processing, and mesh export. Reduced system load means faster processing and better real-time performance. Lower operating costs through an integrated, efficient workflow.
FormatsSTL, OBJ, PLY, 3MF, ASC output
Textures5MP color texture mapping integrated
ModesAll scan modes managed in one interface
Windows 11 Compatible
macOS Compatible
Mesh Processing
Point Cloud Export
Optional Add-On
EXModel Personal — From Scan to CAD
Upgrade your workflow with EXModel Personal, seamlessly integrated with EXStar Hub. Transfer mesh data from scan to design with a single click. Powerful mesh editing, primitives extraction, 2D/3D sketching, CAD surfacing, and deviation analysis — everything needed to turn a scan into a usable design.
EditReduce polygons, fill holes, remove outliers for watertight meshes
PrimitivesReconstruct planes, cylinders, cones, and spheres
CADExtrude, revolve, sweep, fillet, Boolean operations
AnalysisReal-time deviation comparison with adjustable tolerance
Single-Click Transfer
Watertight Mesh Output
3D Printing Ready
Reverse Engineering
08

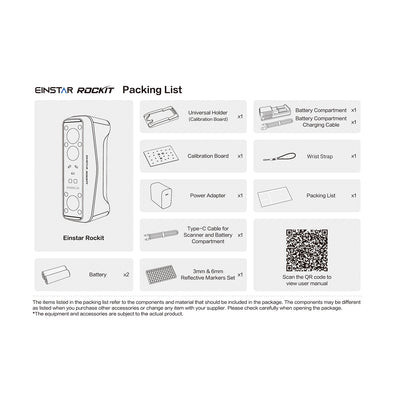

Package Contents
Everything You Need — Ready Out of the Box

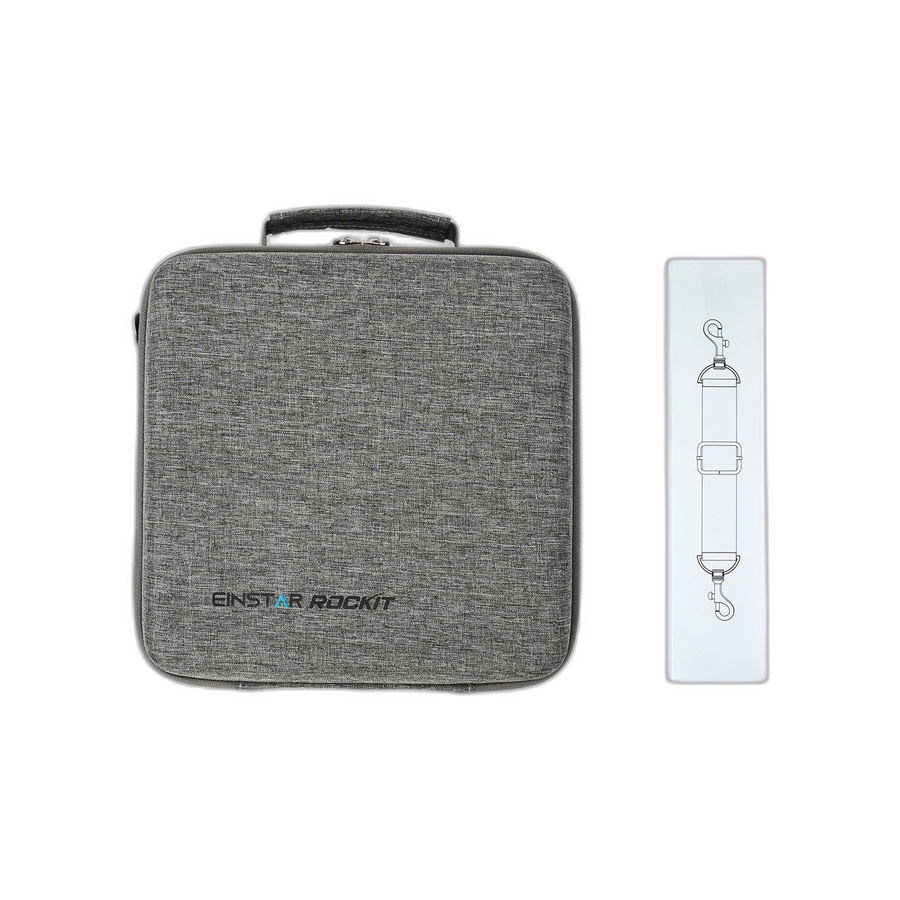

Hard Carrying Case

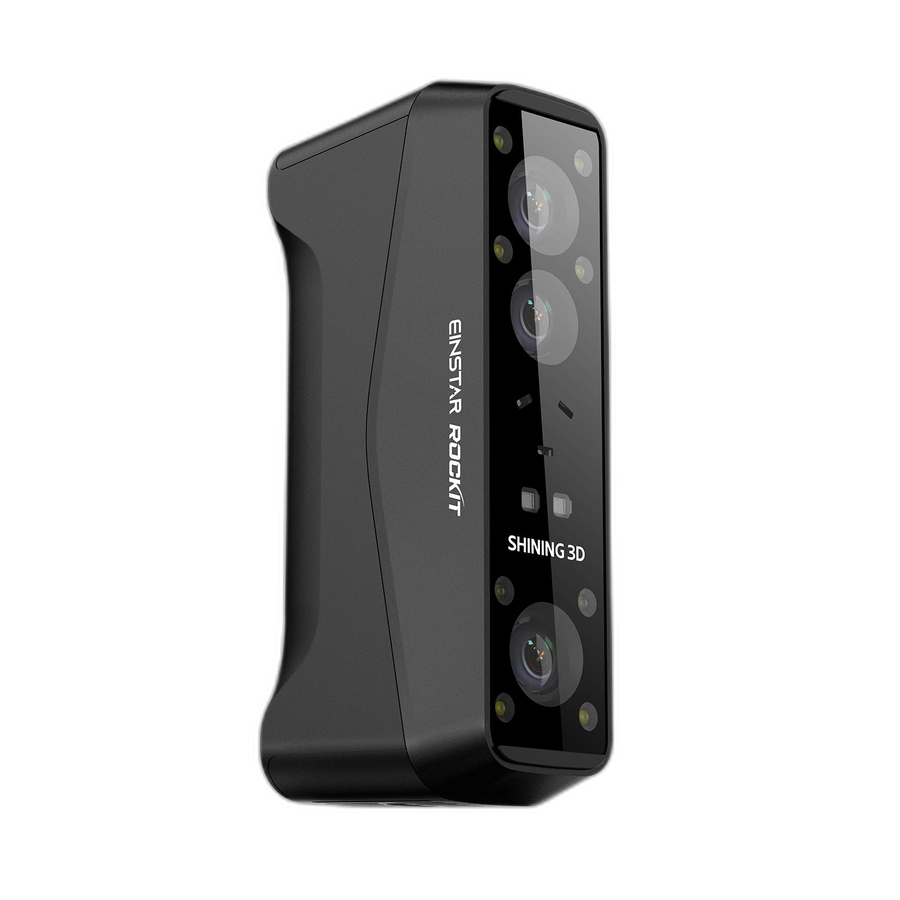

EINSTAR Rockit Scanner

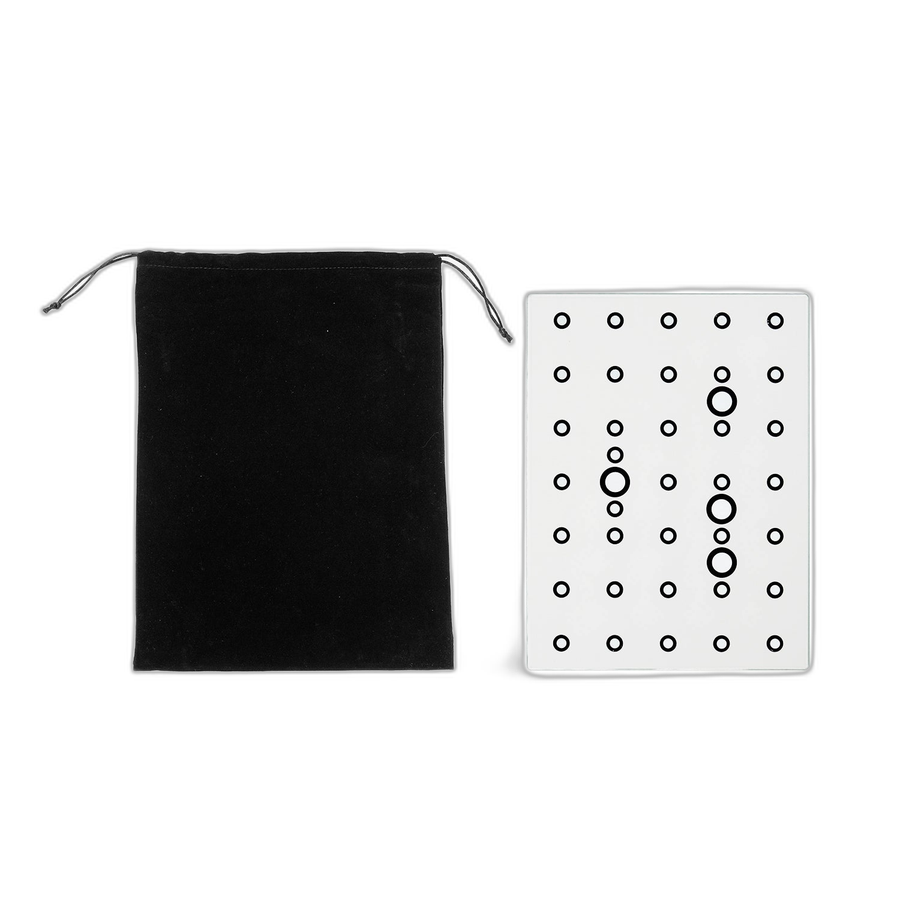

Calibration Board

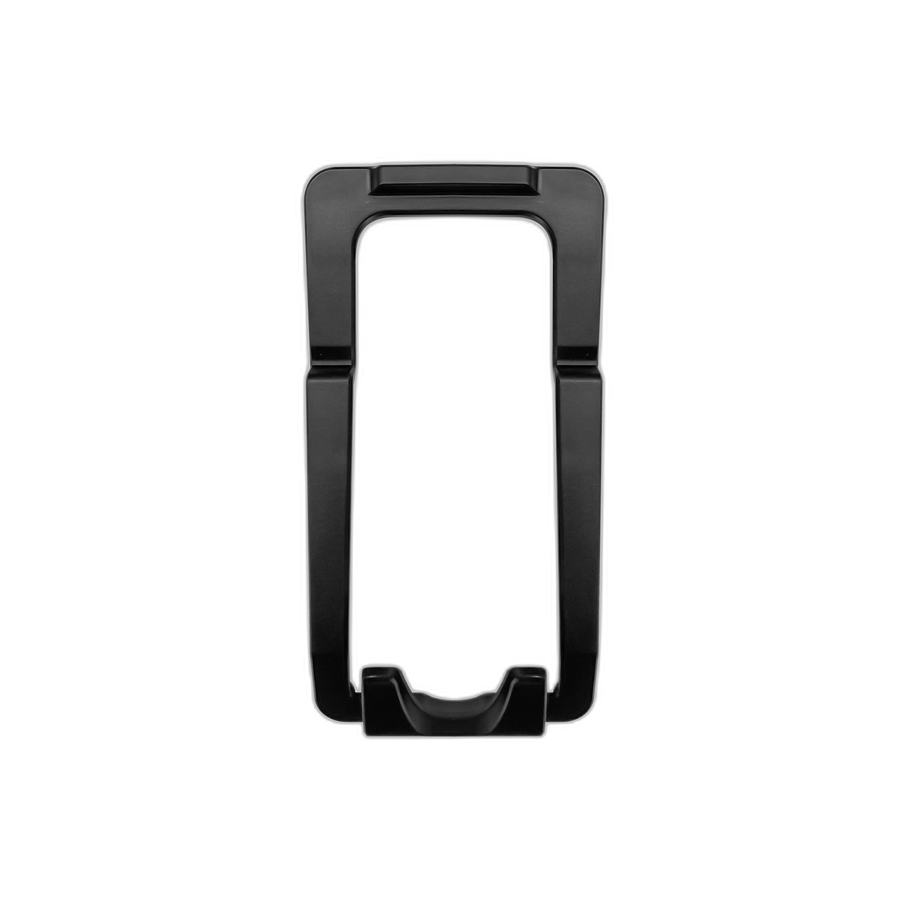

Universal Holder (Cal Board)

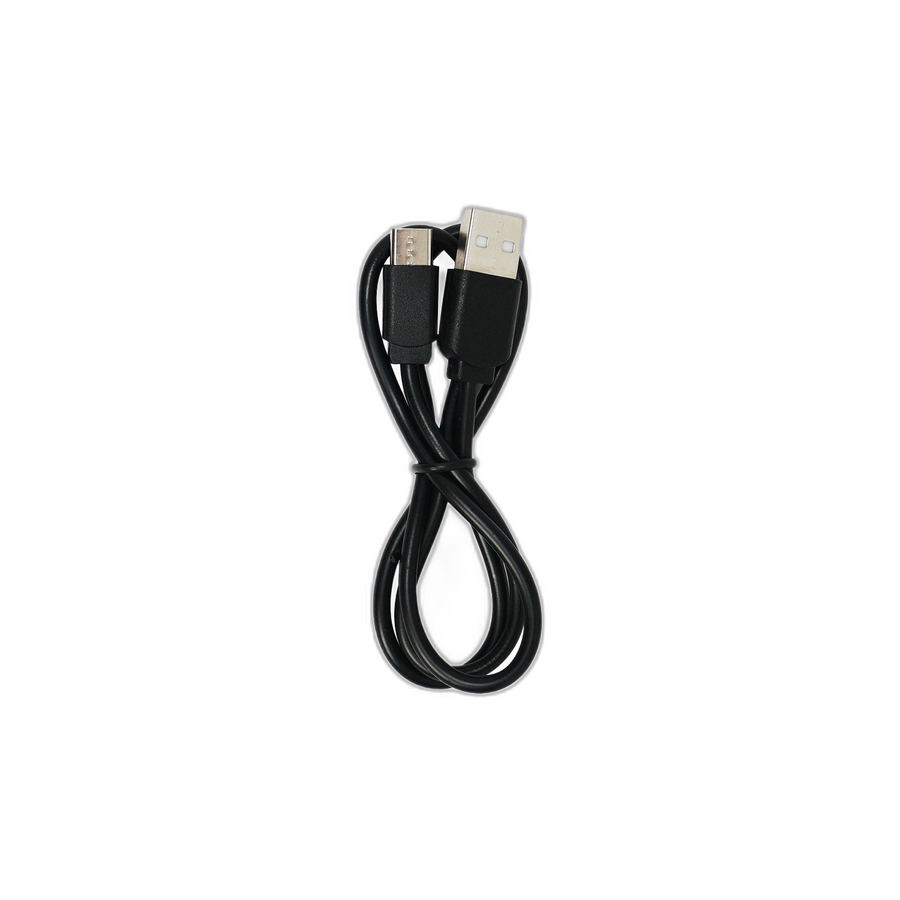

Battery Compartment Charging Cable

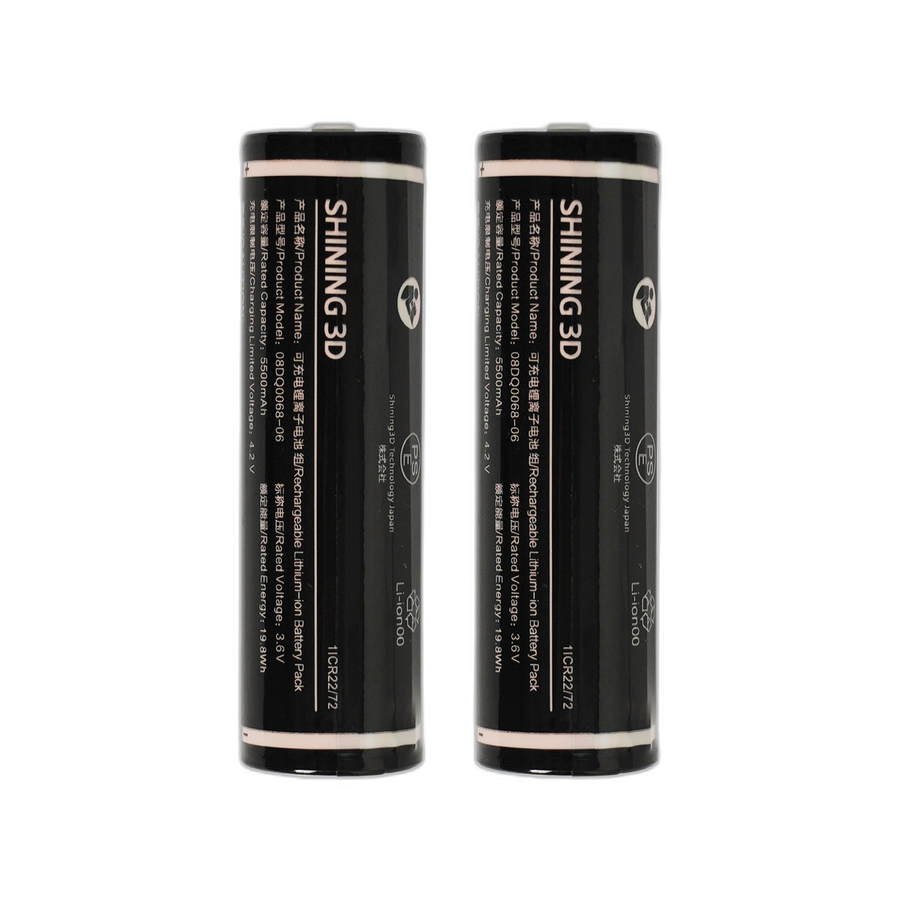

Battery (×2 included)

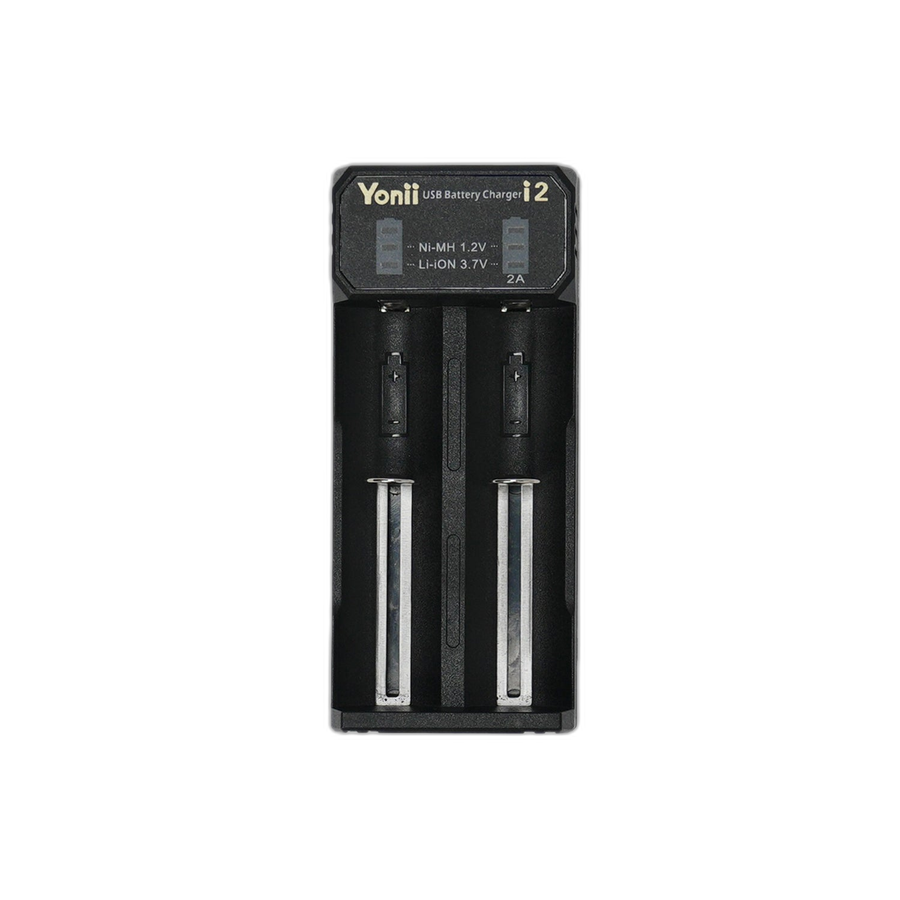

Battery Compartment

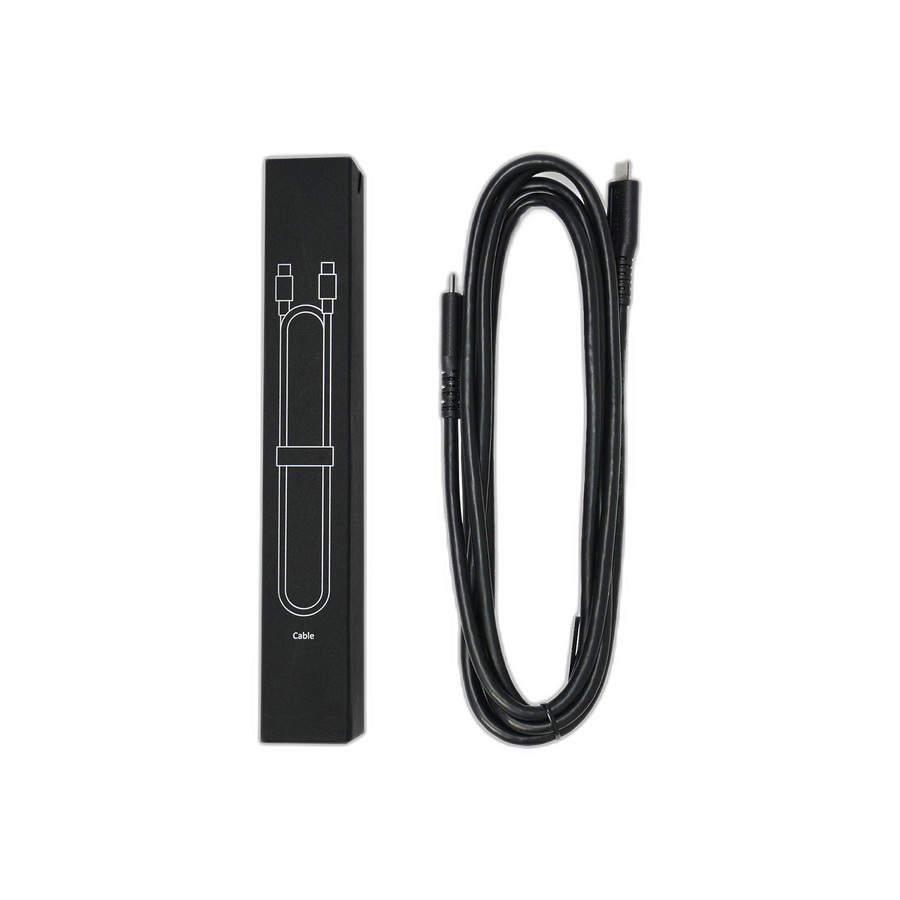

USB Type-C Cable

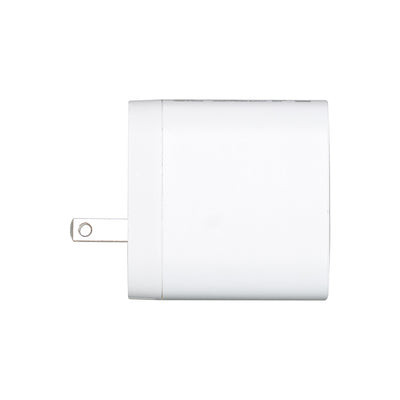

Power Adaptor

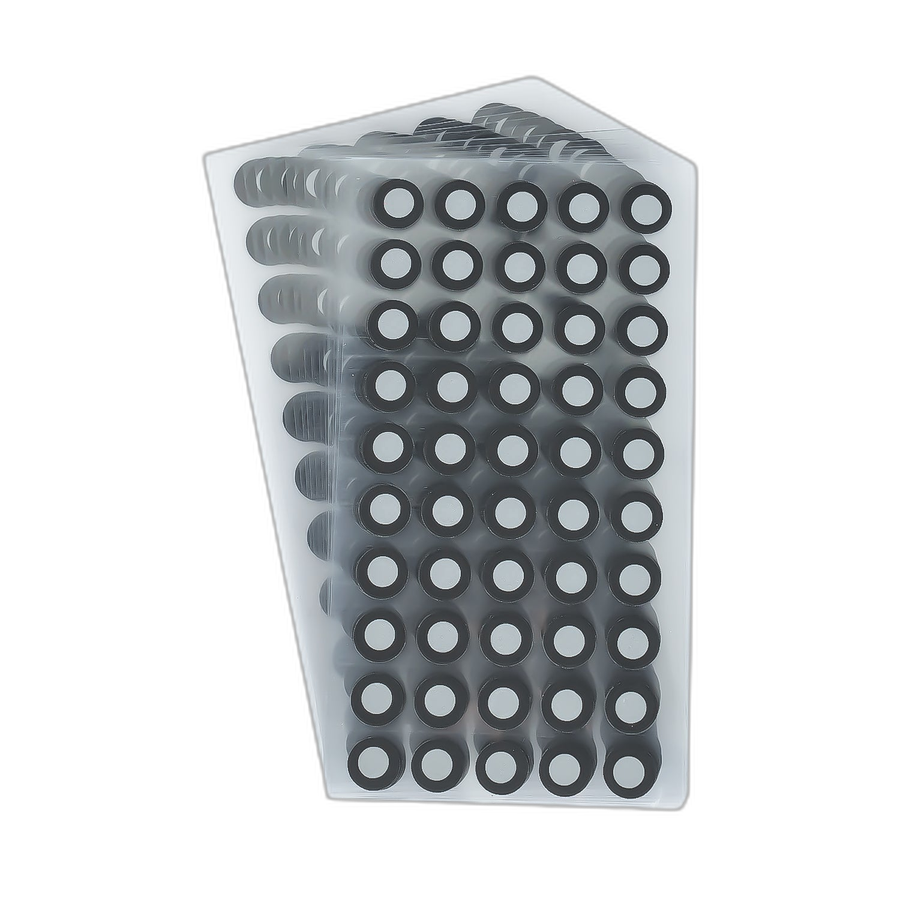

3mm + 6mm Markers

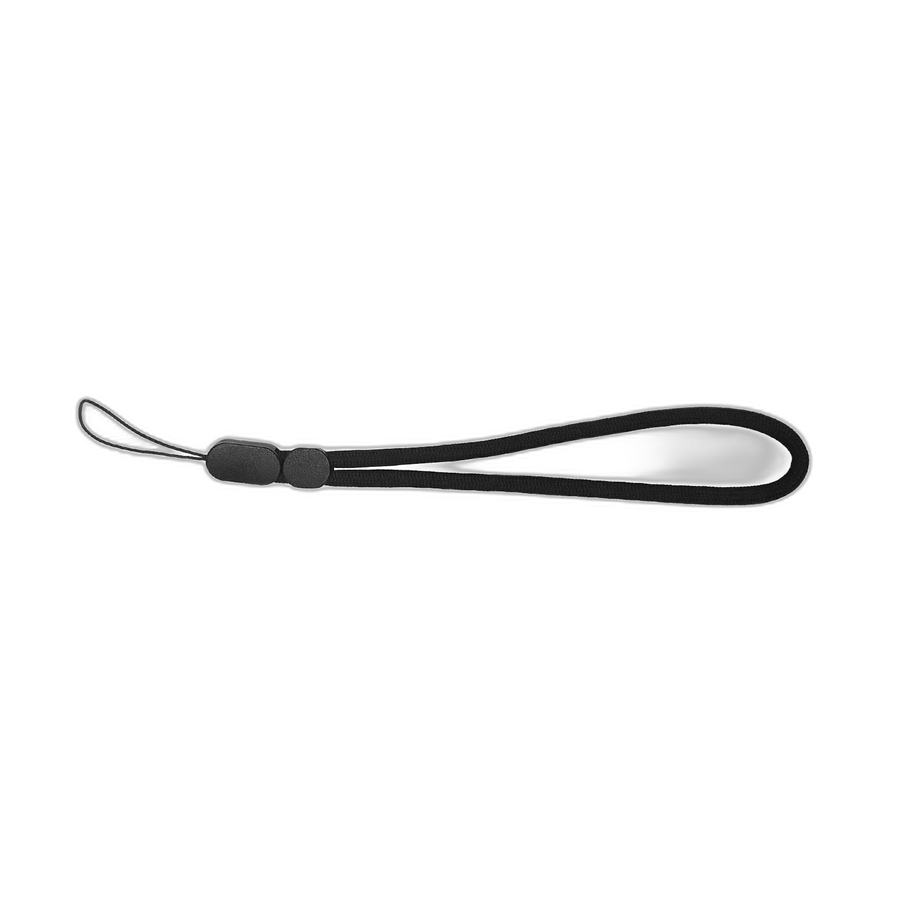

Wrist Strap
Packing List
09
Scanner Gallery
See the Detail for Yourself

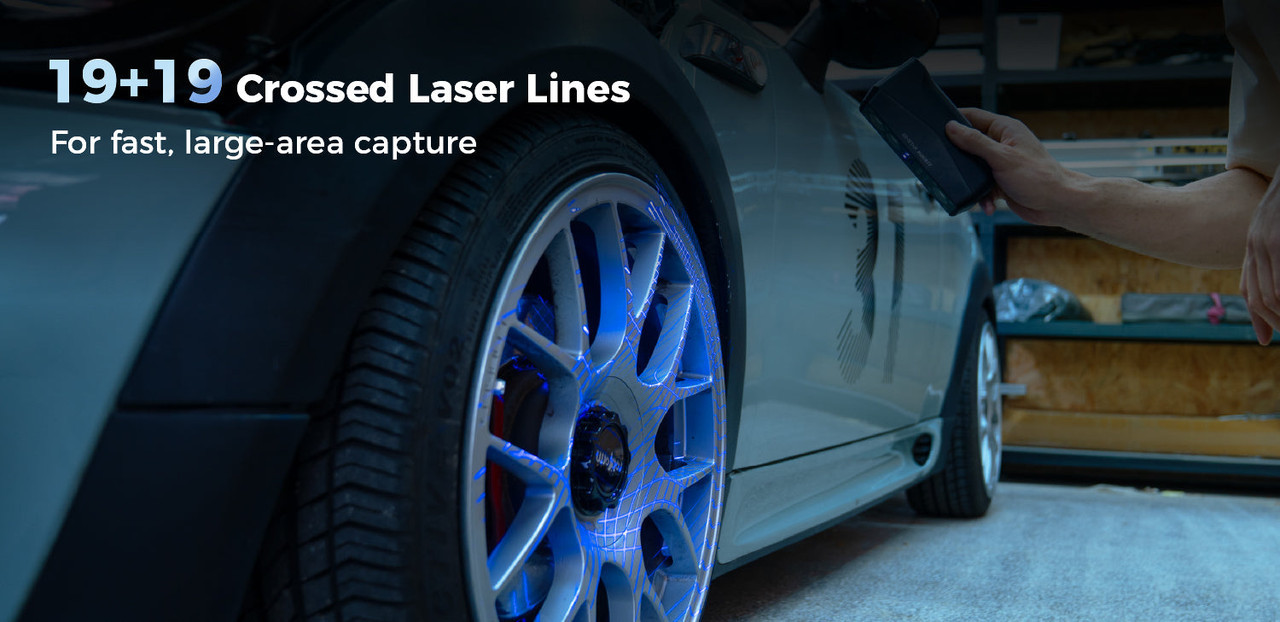

Crossed Laser Lines
19+19 crossed laser lines capture broad surface geometry in a single pass. Fast, reliable, stable tracking on complex shapes.

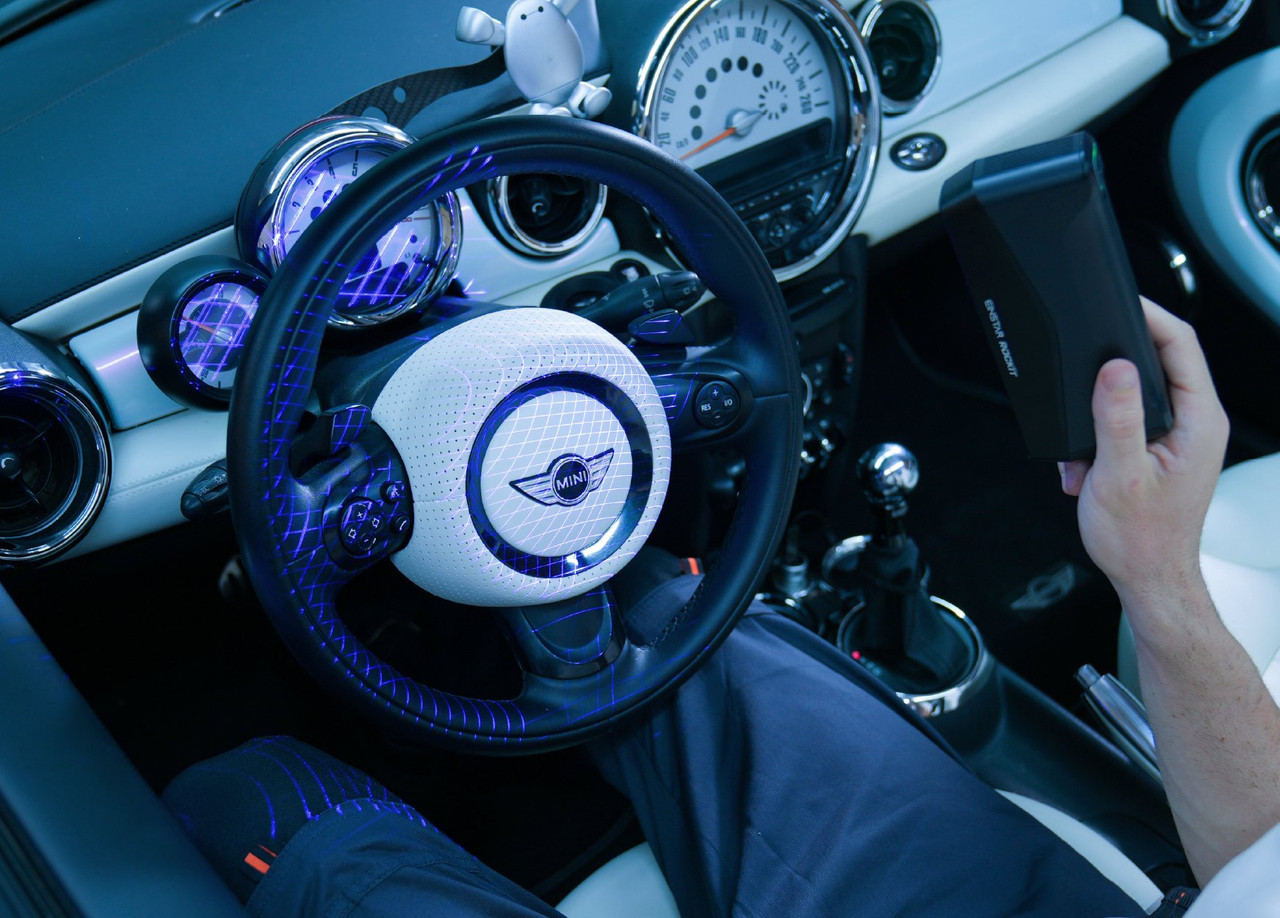

Outdoor Field Use
True wireless freedom in the field. No power cables, no tethers. Battery-powered scanning anywhere the object is — not just in the lab.
Clean Point Cloud Output
High-quality, consistent point cloud data you can trust. Clean output reduces post-processing time and gets you to design faster.
5MP Texture Capture
Photorealistic color texture mapped to 3D geometry. Ideal for digital content creation, cultural preservation, and AR/VR asset production.
PC Workflow Integration
Wi-Fi or USB-C to PC. EXStar Hub handles real-time preview, processing, and export in one unified interface on Windows or macOS.

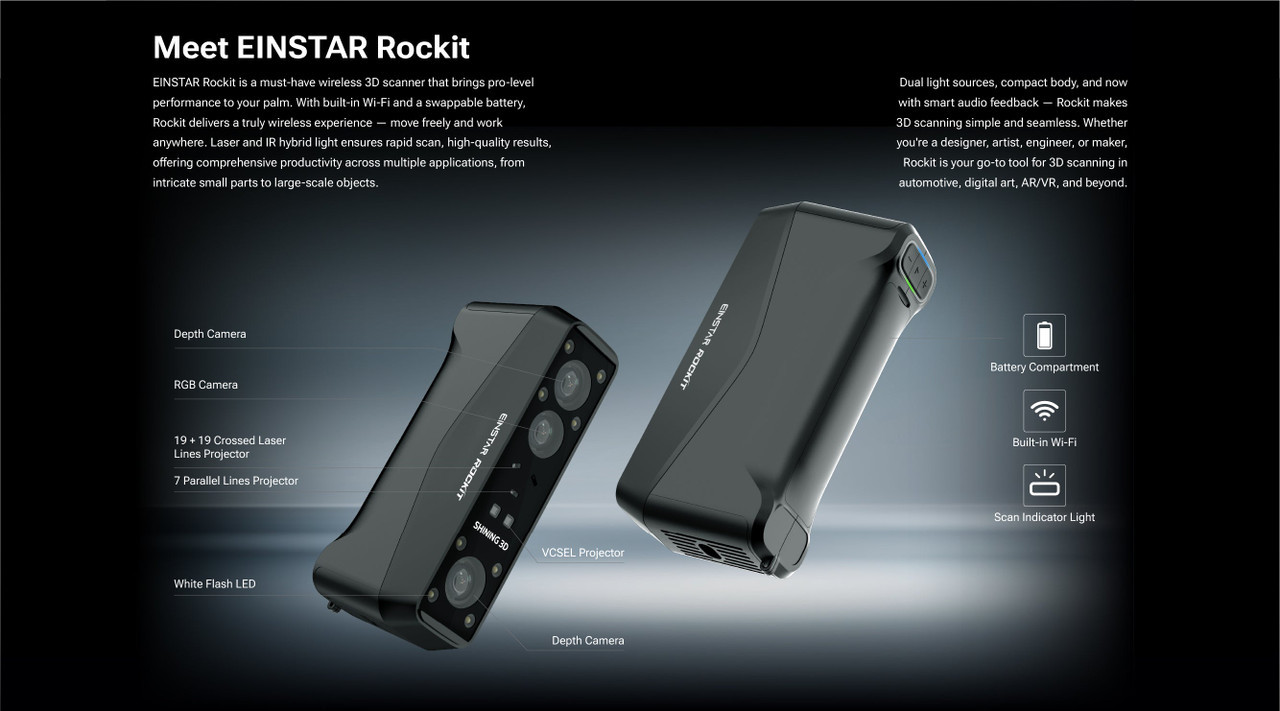

Ergonomic Handheld Design
130×37×61mm body fits comfortably in one hand. Solid, refined build with a professional finish. Wrist strap for secure long-duration scanning sessions.
10
Technical Data
Full Specifications
Scan Mode
Laser HD / IR Rapid
Light Source
Laser HD: 38 Laser Lines (19+19 crossed + 7 parallel blue laser) | IR Rapid: IR VCSEL
Resolution
Laser HD: 0.05 – 10 mm | IR Rapid: 0.2 – 10 mm
Scan Speed
Laser HD: 2,800,000 pts/s | IR Rapid: 4,800,000 pts/s
Working Distance
Laser HD (crossed): 100 – 600 mm | Laser HD (parallel): 100 – 400 mm | IR Rapid: 160 – 1400 mm
Max FOV
Crossed lines: 545 × 620 mm | Parallel lines: 355 × 425 mm | IR: 1170 × 1385 mm
Alignment Mode
Laser HD: Global Marker / Markers / Features / Hybrid | IR Rapid: Global Marker / Markers / Features / Texture / Hybrid
Min Scan Volume
Laser HD: 5 × 5 × 5 mm | IR Rapid: 50 × 50 × 50 mm
3D Camera
2MP × 2
Texture Camera
5 MP color
Output Formats
STL, OBJ, PLY, 3MF, ASC
Laser Class
Class 2
Outdoor Scanning
Laser HD: Below 110,000 Lux | IR Rapid: Below 70,000 Lux
Operating Temperature
-10°C – 40°C
Interface / Power
USB Type-C | Battery: 5,500 mAh × 1 | Supports 60W PD 3.0 charging
Connectivity
Built-in Wi-Fi + USB Type-C
Dimensions
130 × 37 × 61 mm (5.12 × 1.46 × 2.40 in)
Net Weight
420g / 0.92 lbs (batteries included) | 348g / 0.77 lbs (batteries excluded)
Certifications
CE, FCC, RoHS, WEEE, FDA, SRRC, IP50
PC
System Requirements
Recommended Computer Configurations
Windows
OS
Win11 Professional 22H2 (64-bit)
GPU
NVIDIA GeForce RTX 3060 Laptop GPU or above | VRAM: 6GB+
RAM (Minimum)
32 GB DDR5 dual-channel
RAM (Recommended)
64 GB+ DDR5 dual-channel (required for marker-free laser)
CPU
13th Gen Intel® Core™ i7-13700H or above
Interface
USB 3.0
macOS
OS
macOS Tahoe 26.2
Minimum
MacBook Pro M1 or MacBook M3 or above | RAM: 16GB+
Recommended
MacBook Pro M3 or above (Max & Ultra) | RAM: 24GB+
11
Common Questions
Frequently Asked Questions
Who is the Rockit designed for?
EINSTAR Rockit is ideal for product designers, automotive engineers, 3D artists, educators, and makers. Applications span automotive part scanning, digital art creation, AR/VR content production, healthcare and O&P, cultural heritage preservation, and scanning large outdoor objects like statues and sculptures.
Are markers required for scanning?
No — Rockit supports marker-free laser scanning in both crossed and parallel line modes, using feature recognition for alignment. Marker-based alignment is also supported for low-feature objects in laser mode. IR Rapid mode includes full Hybrid alignment (features, texture, markers) for maximum versatility.
Does Rockit support wireless scanning?
Yes. Rockit has a built-in Wi-Fi module that connects directly to a PC with no additional accessories needed. It provides a convenient, stable wireless connection. A USB Type-C cable connection is always available as a fallback if Wi-Fi interference occurs in your environment.
What is the battery life?
Each battery provides up to 3 hours of runtime. Two batteries and one external battery charger are included in the box, so you can use one battery while the other charges simultaneously — continuous scanning without power anxiety.
Can Rockit scan outdoors or in bright light?
Yes — Rockit is designed for outdoor use. Laser HD mode operates in ambient light up to 110,000 Lux (equivalent to full direct sunlight). IR Rapid mode supports up to 70,000 Lux. Fully wireless and battery-powered, it scans large outdoor objects anywhere without requiring a power outlet.
Is the texture resolution truly 5MP?
Yes. EINSTAR Rockit has a dedicated 5MP color camera. The advanced texture mapping algorithm processes data with minimal resolution loss, ensuring the final 3D model achieves genuine 5MP texture quality — photorealistic results with accurate colors and sharp surface detail.
What PC do I need for marker-free laser scanning?
For smooth marker-free laser scanning, 64GB RAM is strongly recommended. Minimum specs for general use: Windows 11 64-bit, NVIDIA RTX 3060 GPU (6GB VRAM+), Intel 13th Gen i7-13700H or equivalent, 32GB DDR5 RAM, USB 3.0. Mac users need at minimum an M1 MacBook Pro with 16GB RAM; M3 Max/Ultra with 24GB+ is recommended.
What accessories and add-ons are available?
Available accessories include additional 3mm, 6mm, and 12mm marker sets, a metal tripod with gimbal for stationary scanning workflows, the Accessories Pro Kit, AESUB Blue anti-reflective scanning spray, and the EXModel Personal reverse engineering software add-on. Contact Rev1 for bundle pricing and availability.
