AESUB Blue Vanishing 3D Scanning Spray 400ml
Authorized AESUB Dealer
Free Shipping on Orders $100+
Made in Germany
No Titanium Dioxide (TiO2)
(248) 707-2950
Self-Vanishing in ~4 HoursNo Cleanup RequiredPigment-Free Formula8–15 µm LayerTiO2-FreeWorks on Reflective SurfacesWorks on Transparent Parts400ml Aerosol CanSelf-Vanishing in ~4 HoursNo Cleanup RequiredPigment-Free Formula8–15 µm LayerTiO2-FreeWorks on Reflective SurfacesWorks on Transparent Parts400ml Aerosol Can
Scanning Spray
Why AESUB Blue
Is the Industry Standard
Is the Industry Standard
Spray It and Forget It
Traditional scanning sprays leave a mess requiring cleaning after every session. AESUB Blue sublimates completely within approximately 4 hours — no wiping, no solvents, no wasted time. Apply it on the spot, scan, and move on.
Zero Pigment Contamination
Conventional sprays contain pigments that settle on scanners, lenses, and air filters. AESUB Blue is entirely pigment-free — spray it directly next to your scanner without any contamination risk to your lab or production environment.
Uniform 8–15 µm Coating
At 8–15 microns, AESUB Blue lays down a thin, homogeneous matte layer that creates ideal contrast for structured light and laser scanners. Controlled layer thickness keeps measurements accurate.
Application Guide
Three Steps to
Perfect Scan Conditions
Perfect Scan Conditions
01
Spray

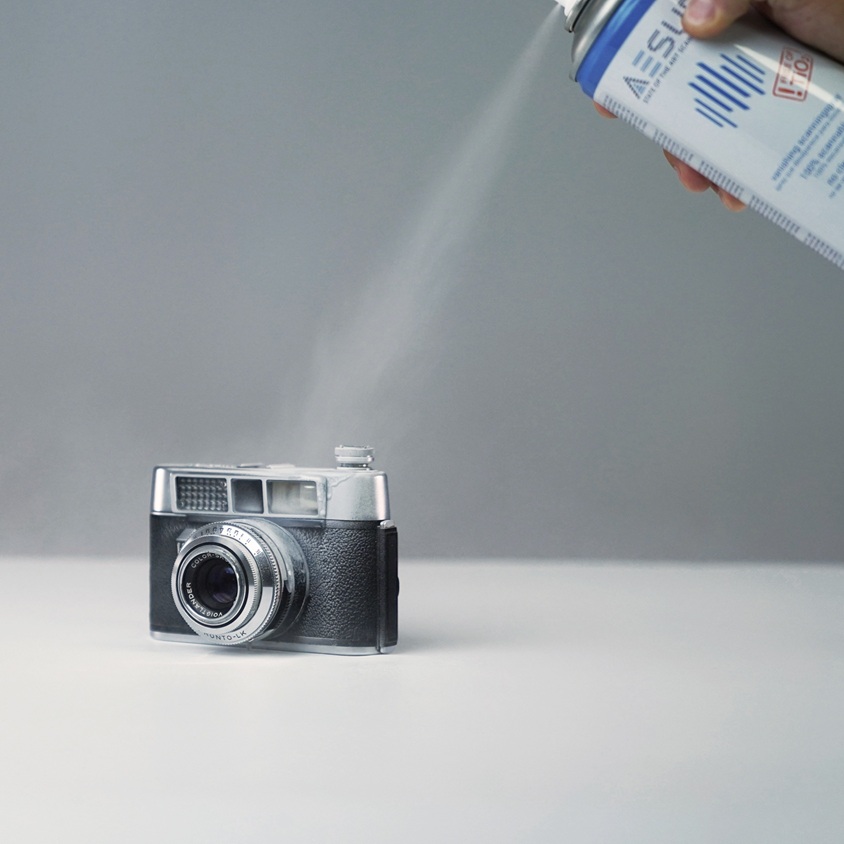

Hold the can 15–20 cm from the surface. Apply an even coat with smooth back-and-forth strokes. Avoid wagging — one consistent pass is all you need.
02
Scan
Begin scanning once the coating is stable and dry to the touch. Reference targets adhere cleanly to the coated surface. Re-spray areas as needed to extend the scan window.
03
Done
The coating sublimates completely — no cleaning required. Parts are reusable with zero residue. Higher temperatures accelerate sublimation; cooler environments extend it.
Surface Compatibility
Scan What Was
Previously Unscannable
Previously Unscannable
Problem Solver
Reflective, Transparent, and Dark Surfaces — Handled
Optical 3D scanners struggle with three surface types: shiny metals that scatter structured light, transparent parts that let light pass through, and dark surfaces that absorb it. AESUB Blue creates a uniform matte white layer across all three — giving your scanner the contrast it needs to capture accurate data on every pass.
Shiny MetalChromeTransparent Plastics
GlassDark SurfacesCarbon Fiber
Technical Specifications
AESUB Blue —
Full Spec Sheet
Full Spec Sheet
| Product Type | Vanishing / Sublimating Aerosol Spray |
| Volume | 400ml per can |
| Layer Thickness | 8–15 µm |
| Scan Time (usable) | Approx. 1–2 hours at 21°C |
| Sublimation Time | Approx. 4 hours at 21°C |
| Application Distance | 15–20 cm from surface |
| Pigments | None — pigment-free |
| Titanium Dioxide (TiO2) | None — TiO2-free |
| Residue After Sublimation | None — certified residue-free |
| Shelf Life | 3 years |
| Storage | Dry, 18–21°C optimal, protect from sunlight, max 50°C |
| Origin | Made in Germany |
| Price | $39.50 per can | Volume pricing available |
*Specifications from AESUB official documentation. Sublimation time varies with ambient temperature and conditions.
AESUB Lineup
Which AESUB Spray
Is Right for You?
Is Right for You?
| Spray | Type | Scan Time | Vanishes In | Layer | Best For |
|---|---|---|---|---|---|
| AESUB Blue ← You Are Here | Vanishing | 1–2 hr | ~4 hr | 8–15 µm | Everyday scanning, small–medium parts |
| AESUB Violet | Vanishing | 2–6 hr | ~24 hr | 4–8 µm | Precision metrology, extended sessions |
| AESUB Orange | Vanishing | 4–8 hr | ~24 hr | 2–6 µm | Large parts, all-day scanning sessions |
| AESUB Diamond | Vanishing | ~10 min | 10–30 min | 2 µm | Jewellery, tiny precision parts |
| AESUB Transparent | Vanishing | 1–2 hr | ~4 hr | 15–20 µm | Color/texture scanning, photogrammetry |
| AESUB White | Permanent | Unlimited | Manual clean | 7 µm | When permanent coating is acceptable |
Not sure which spray fits your workflow? Contact our scanning team — we'll match you to the right product based on your scanner type, part size, and environment.
Why Buy From Rev1
You're Not Just Buying a Spray.
You're Getting a Scanning Partner.
You're Getting a Scanning Partner.
Sold & Supported By
Authorized Partner
Most online spray vendors just ship a box. Rev1 Technologies is an authorized AESUB dealer based in Auburn Hills, Michigan — we carry the full AESUB lineup, stock it locally, and can answer real questions about which spray works for your scanner, your surfaces, and your production environment. We use AESUB ourselves.
01
Authorized AESUB Dealer
Michigan, Ohio, and Indiana — authorized to sell the full AESUB product line.
02
Expert Application Support
We use AESUB in our own scanning lab. Real advice from real scanning experience.
03
Same-Day Shipping
Stocked in Auburn Hills. Order before 2pm ET and it ships today.
04
Volume Pricing
Case and pallet pricing available. Contact us for high-volume quotes.
05
Scanner + Spray Bundles
Buy your EinScan or Shining3D scanner from Rev1 and get AESUB at preferred pricing.
06
Local Support
Michigan-based team. Same timezone, same-day response. (248) 707-2950.
Complete Your Kit
Works Best With
These Products
These Products
Common Questions
Frequently Asked —
AESUB Blue
AESUB Blue
Does AESUB Blue really disappear on its own?+
Yes. AESUB Blue sublimates — it transitions from solid coating to vapor without leaving any residue. At 21°C it's fully gone within approximately 4 hours. Independent lab testing confirms zero residue. You do not need to wipe, wash, or clean anything.
How long do I have to scan after spraying?+
Approximately 1–2 hours at 21°C. Higher temperatures shorten the usable window; cooler environments extend it. Re-spray individual areas as needed — there's no penalty for additional coats.
Is AESUB Blue safe to use around my scanner?+
Yes. Because it's completely pigment-free, there's no risk of contaminating your scanner's lenses, projectors, or air filters. You can spray it directly at the scanning location without removing or covering equipment.
What scanners and surfaces does it work with?+
AESUB Blue works with structured light, laser, photogrammetry, and LiDAR scanners including EinScan, Shining3D, GOM, ZEISS, Creaform, Hexagon, and Artec. Effective on reflective metals, chrome, transparent plastics, glass, dark parts, and deep pockets.
Can I buy AESUB Blue by the case?+
Yes. 12-can cases are $32.90 per can ($394.80 total). 96-can pallets are $25.90 per can ($2,486.40). Contact Rev1 at (248) 707-2950 or hello@rev1tech.net for case pricing.
